Introduction:

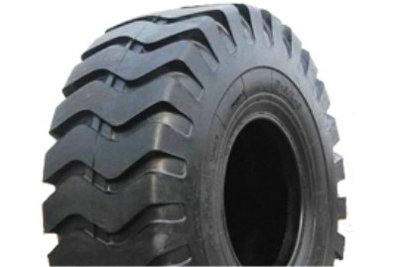

This pattern tyre has deeper panern and different design compared with DNR(Z), resulting in extended service life and higher compatibility in addition to all benefits of DNR(Z).

Size	PR	Tread Depth   (mm)	Standard Rim	Inflation Tyre  Dimension		Max Load  (KG)				TT or TL
				Section Width	Overall Diameter	Max Speed	Pressure	Max Speed	Pressure
				(mm)	(mm)	60 km/h	Kpa	80 km/h	Kpa
14.00-24	24	25.5	10	405	1310	5150	575	9500	850	TT
	28		10	405	1310	5600	650	10000	925
17.5-25	12	26	14.00/1.5	445	1350	3650	225	6150	350	TT/TL
	16		14.00/1.5	445	1350	4250	300	7300	475
20.5-25	16	28.5	17.00/2.0	520	1490	5450	275	8250	350	TT/TL
	20		17.00/2.0	520	1490	6000	325	9500	450
23.5-25	16	32	19.00/2.5	595	1615	6150	225	9500	350	TT/TL
	20		19.00/2.5	595	1615	7300	300	10900	375
26.5-25	28	35	22.00/3.0	675	1750	10000	350	15500	475	TL
	32		22.00/3.0	675	1750	11200	425	17000	550
29.5-25	22	40	22.00/3.0	750	1850	10000	250	15000	325	TL
	28		22.00/3.0	750	1850	11500	325	17500	425
16.00-25	28	28.5	11.25/2.0	430	1490	6700	575	11500	750	TT
